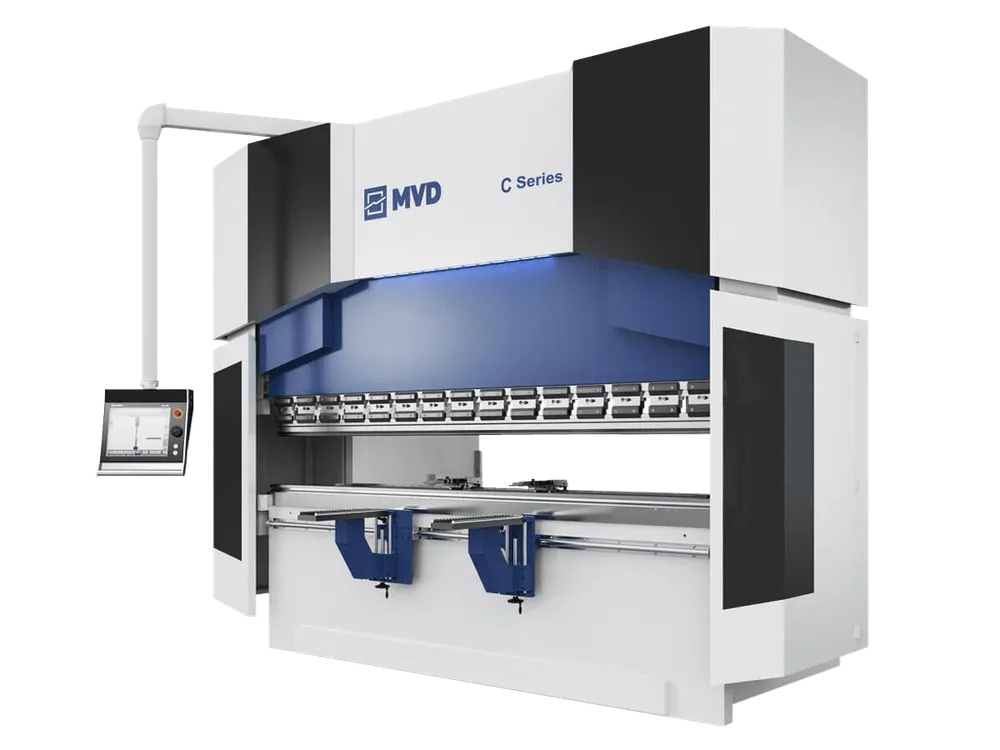

MVD iBend C

HYDRAULIC PRESS BRAKE
C SERIES

Designing and Manufacturing are based on reliability, durability and precision. Machines are easy to use and are built to be ready to serve for many years. Quality and service support is accepted as principle.

Get a quote Download brochure

Model	Bending Force	Bending Length	Distance Between Columns	Stroke	Daylight	Throat	Table Height	PIT	Machine Dimensions			Speed			Oil Tank	Main Motor	Weight
	Ton	A	B	C	J	D	E	F	Length x Width x Height (L x W x H)			Approach Speed	Return Speed	Bending Speed	Lt	kW	kg
	Ton	mm	mm	mm	mm	mm	mm	mm	mm			mm/s			Lt	kW	kg
C100	100	2600	2150	310	515	410	890	–	4220	2230	2950	200	180	10	180	7,5	6950
C100	100	3100	2600	310	515	410	905	–	4670	2230	2950	200	180	10	180	7,5	7300
C135	135	3100	2600	310	515	410	935	–	5150	2650	2950	210	130	10	180	11	8350
	135	3700	3200	310	515	410	945	–	5750	2650	2950	210	130	10	180	11	10000
	135	4100	3600	310	515	410	945	–	6150	2650	2995	210	130	10	180	11	10600
C175	175	3100	2600	310	515	410	935	–	5150	2650	2950	180	130	10	180	15	9700
	175	3700	3200	310	515	410	945	–	5750	2650	2950	180	130	10	180	15	11350
	175	4100	3600	310	515	410	945	–	6150	2650	2995	180	130	10	180	15	11900
C220	220	3100	2600	310	515	410	940	–	5180	2650	2950	180	140	10	290	18,5	11300
	220	3700	3200	310	515	410	965	–	5780	2650	3040	180	140	10	290	18,5	12850
	220	4100	3600	310	515	410	965	–	6180	2650	3040	180	140	10	290	18,5	13650
	220	5100	4200	310	515	410	995	–	7180	2650	3090	180	140	10	290	18,5	17000
	220	6100	5100	310	515	410	995	–	8180	2650	3090	180	140	10	290	18,5	21700
C220	270	3100	2600	310	515	410	950	–	5200	2650	3040	150	120	10	290	22	13300
	270	3700	3200	310	515	410	955	–	5800	2650	3040	150	120	10	290	22	14500
	270	4100	3600	310	515	410	955	–	6200	2650	3040	150	120	10	290	22	15300
C320	320	3100	2600	310	535	410	955	–	5300	2655	3070	150	110	10	290	22	14700
	320	3700	3200	310	535	410	955	–	5750	2655	3080	150	110	10	290	22	15500
	320	4100	3600	310	535	410	955	–	6150	2655	3130	150	110	10	290	22	16800
	320	5100	4200	310	535	410	1045	–	7150	2655	3140	150	110	10	290	22	21500
	320	6100	5100	310	535	410	1065	–	8150	2655	3170	150	110	10	290	22	26000
C400	400	3100	2600	310	535	510	1015	–	5150	2685	3400	100	80	8	400	30	18700
	400	3700	3200	310	535	510	975	–	5750	2685	3400	100	80	8	400	30	20700
	400	4100	3600	310	535	510	985	–	6150	2700	3400	100	80	8	400	30	22500
	400	5100	4200	310	535	510	980	–	7150	2700	3400	100	80	8	400	30	25500
	400	6100	5100	310	535	510	1055	–	8150	2700	3600	100	80	8	400	30	33000
	400	8100	7100	310	535	510	815	1300	10150	2785	3750	100	80	8	400	30	45000
C500	500	3700	3200	310	535	510	1035	–	5750	2735	3400	80	70	8	500	37	24100
	500	4100	3600	310	535	510	1025	–	6150	2740	3400	80	70	8	500	37	26300
	500	5100	4200	310	535	510	1055	–	7150	2750	3650	80	70	8	500	37	30000
	500	6100	5100	310	535	510	965	1350	8200	2750	3900	80	70	8	500	37	39500
	500	8100	7100	310	535	510	750	xx	10200	2750	4000	80	70	8	500	37	55500

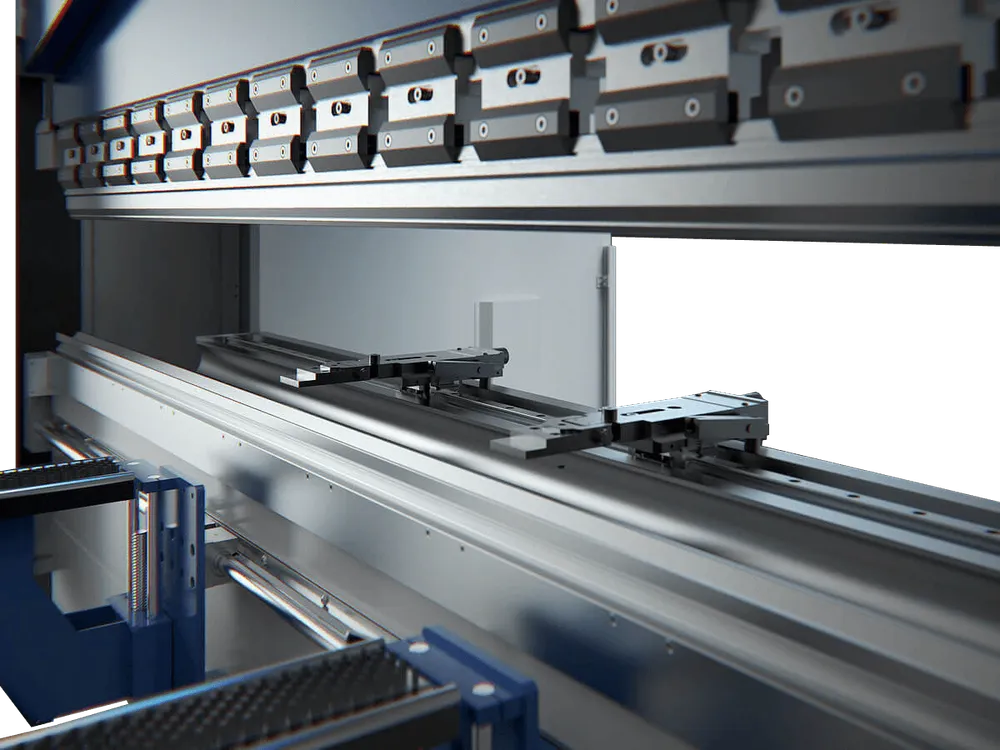

Standard Features
• Y1, Y2, X, R CNC 4 Axes
• 310 mm Stroke, 410 mm Throat Depth
• ESA S640 CNC Control Unit
• ± 0,03 accuracy SERVO motorized back gauge. X=750 mm, R=250 mm
• Quick clamp Promecam punch tool holder
• Sliding front sheet support arms
• Manuel Anti-deflection crowning with original Wila wedges
• MVD special narrow bottom table (European type)
• GIVI optic linear scales
• Standard punch tools (H: 67, 85°, R:08)
• Standard die tools (60x60 mm, 4 Vee V=16-22-35-50 mm, 85°, H:60)
• LED illumination on RAM
Optional Features
• X+R to 4-6-8 axis back gauge options
• Rolleri Rol200 hydraulic punch clamping
• Wila hydraulic punch clamping
• Wide bottom table for Multi Vee dies
• Motorized Anti-deflection crowning with original Wila wedges
• 1.000 mm X axis travel
• AKAS or DSP front laser safety systems
• Additional back gauge fingers
• Front laser safety
