MVD iShear C

VARIABLE RAKE ANGEL HYDRAULIC GUILOTTINE SHEARS

C Series Hydraulic Variable Rake Angle Shears automatic cutting angle calculating, provides high cutting quality in the widest range of materials type and sheet thickness. Automatically calculates and apply; cutting angle, blade gap adjustment, stroke of the cutting length, back gauge positioning according to material type and thickness with CNC controller and servo hydraulic valve.

Get a quote Download brochure

Model	Cutting Capacity		Cutting Length	Cutting Angle	Hold Down Cylinders	Cutting Speed / Fast Mode	Distance Between Columns	Table Height	Table Width	Throat Depth	Backguage Travel – X Axis	Machine Dimensions			Oil Tank Capacity	Motor Power	Weight
	450 N/mm²	700 N/mm²	A	Min-Max	Qty	hpm	B	C	D	E	mm	Length x Width x Height (F x G x H)			lt	Kw	Tons
	mm	mm	mm	Degree (°)	Qty	hpm	mm	mm	mm	mm	mm	F	G	H	lt	Kw	Tons
C06/3100	6	4	3100	0,5-2	14	10/15	3500	835	520	250	1000	4830	2995	1975	200	10	6,7
C08/3100	8	5	3100	0,5-2,7	14	10/15	3500	900	615	250	1000	4830	3140	2150	275	15	7,5
C10/3100	10	6	3100	0,5-3	14	7/13	3600	880	620	250	1000	4950	3415	2415	295	22	10,5
C13/3100	13	8	3100	0,5-3	14	7/13	3600	900	620	250	1000	4970	3670	2505	295	22	12,8
C16/3100	16	10	3100	0,5-3	17	6/12	3670	995	705	250	1000	5060	3810	2680	340	30	16
C20/3100	20	13	3100	0,5-3	17	5/10	3705	995	720	250	1000	5115	3800	2680	510	37	22
C25/3100	25	17	3100	0,5-3	17	4/8	3760	995	720	250	1000	5150	3850	2730	510	45	24
C06/4000	6	4	4000	0,5-2	17	10/14	4460	860	650	250	1000	5790	3165	2210	200	10	10,7
C08/4000	8	5	4000	0,5-2,7	17	9/13	4460	880	650	250	1000	5800	3400	2350	200	15	14
C10/4000	10	6	4000	0,5-3	18	6/12	4460	880	650	250	1000	5790	3650	2580	300	22	16
C13/4000	13	8	4000	0,5-3	18	6/12	4460	900	700	250	1000	5860	3830	2675	300	22	18
C16/4000	16	10	4000	0,5-3	18	6/12	4580	1010	700	250	1000	5980	3750	2825	390	30	21,5
C20/4000	20	13	4000	0,5-3	18	5/10	4590	1025	720	250	1000	6000	3775	2830	510	37	27
C25/4000	25	17	4000	0,5-3	18	4/8	4600	1025	735	250	1000	6000	3875	2930	510	45	30
C06/6100	6	4	6100	0,5-3	26	9/13	6490	1050	735	250	1000	7900	3585	2885	300	11	22
C08/6100	8	5	6100	0,5-3	26	8/12	6500	1100	735	250	1000	7900	3685	2985	300	15	24
C10/6100	10	6	6100	0,5-3	26	5/12	6500	1135	735	250	1000	7960	3785	3085	300	22	27,8
C13/6100	13	8	6100	0,5-3	26	5/12	6500	1255	845	250	1000	7890	3910	3270	300	22	36,5
C16/6100	16	10	6100	0,5-3	26	5/9	6650	1270	920	250	1000	8060	3880	3290	430	30	40
C20/6100	20	13	6100	0,5-3	26	5/7	6650	1285	1100	250	1000	8060	4170	3305	535	37	50
C25/6100	25	17	6100	0,5-3	26	4/6	6670	1350	1100	250	1000	8150	4170	3450	600	45	58

Standard Features

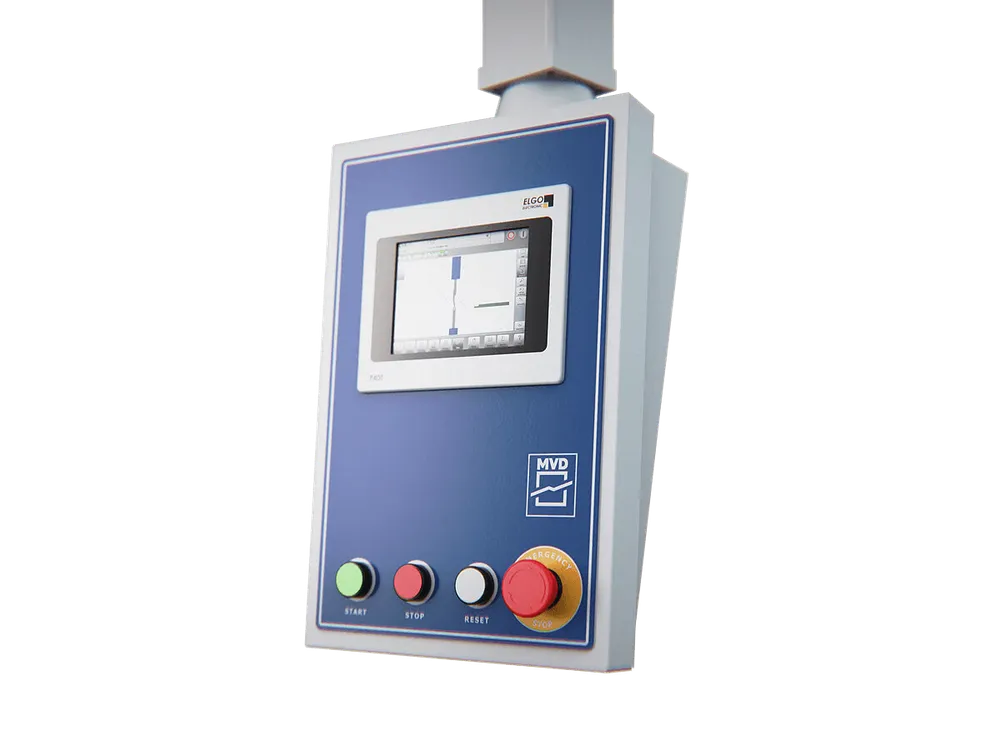

• ELGO P40T Touch screen NC Control Unit
• Rexroth / Hoerbiger hydraulic system
• CNC controlled Auto blade gap, stroke and blade ad- justment system
• 1.000 mm NC Controlled, Programmable, motorized back gauge
• 250 mm throat depth
• Programmable back gauge retract feature
• Back gauge swing-up feature for sheets longer than 1.000 mm
• Stroke adjustment on the control panel to increase stroke/min during cutting short parts
• Transfer table with roller balls
• Upper blade 2 edges / Bottom blade 4 edges
• Components that reduces maintenance need.
• Front support arms 1.000 mm, with ruler scale, T channel & flip stops
• Front and side protective covers
• Illumination cutting line
• Front finger protection guard, 1.000mm which has
swing-up feature
• Foot pedal
• Special designed covers with movable controller arm
• Emergency stop buttons
Optional Features
• Pneumatic Sheet support system (Type 1)
• Pneumatic Sheet support system- with Return to sender feature (Type 2)
• Angular gauge 0-180º
• Longer front sheet supports & squaring arm
• Special throat depth 500mm
• Full length opening front finger guard
• Laser guard for front finger protection
• Special alloy blades
• Laser cutting line
• Oil cooler and oil heater
• Automatic or Manual central lubrication
• AC cooling unit electrical cabinet
• CNC controlled front sheet feeder arms
• Rear laser barrier with CE conformity
• Machine without special design covers
